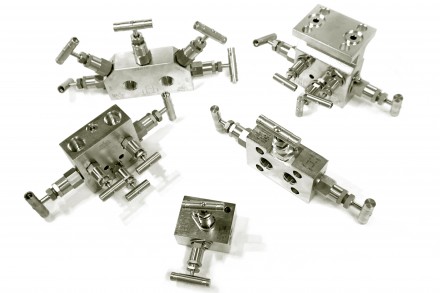

SMV Series Manifold Valves

제품소개

Size

Male Female Thread 1/4” ~ 1”( NPT, PT, PF )


Applications

Pressure & Differential Pressure Instrumentation



Material / Features

316L / Remote mounting type, Direct mounting type with flanged

         1valves, 2valves, 3valves, 5valves instrument manifolds, Special Connection Avaiable


Specifications

Maximum Working Pressure @ 100℉( 38℃ ) : 6000psi( 414bar )

Working Temperature Range : -65˚F to 450˚F (-54˚C to 232˚C ) / PTFE packing

                                        Up to 1200˚F(649˚C) / Graphite packing
